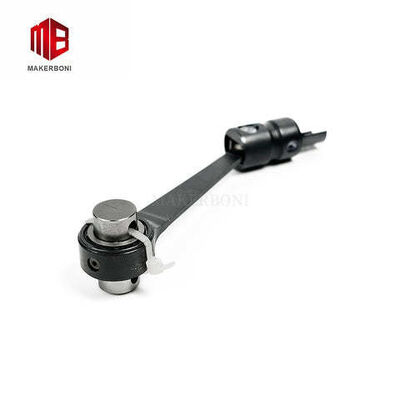

702852 Connect Rod – Support Blade 2.4x8.5 Assembly for Lectra MP6-MP9/MX-M9/iX6
The 702852 Connect Rod is a vital component of the support blade 2.4x8.5 assembly, specifically engineered for Lectra MP6-MP9/MX-M9/iX6 systems. It is precisely designed to establish reliable connections and transmit forces between various components. Crafted from high-strength materials, this connect rod can withstand mechanical stresses and strains during equipment operation. Its accurate dimensions and optimized structure ensure proper alignment and stability of the support blade assembly, playing a crucial role in maintaining the integrity and functionality of the entire mechanism. By facilitating smooth and efficient movement of the support blade, it guarantees precise execution of cutting, shaping, and other key tasks in Lectra machinery compatible with MP6-MP9/MX-M9/iX6. Without this connect rod, the normal operation and precision of the equipment could be severely compromised.
Key Features & Benefits (Spare Parts & Support Blade Assembly Solutions)
- Precise Model Compatibility: Exclusively matched to Lectra MP6-MP9/MX-M9/iX6 systems, perfectly fitting the support blade 2.4x8.5 assembly without additional modifications, ensuring seamless integration with original equipment.
- Reliable Force Transmission: Optimized structural design enables stable and efficient force transmission between components, guaranteeing smooth movement of the support blade and enhancing the precision of cutting and shaping tasks.
- High-Strength Durable Construction: Made of high-strength alloy materials, featuring excellent fatigue resistance and load-bearing capacity, capable of withstanding long-term mechanical stresses and extending service life.
- Accurate Dimensional Tolerance: Strictly controlled machining precision ensures accurate dimensions, maintaining proper alignment of the support blade assembly and avoiding operational deviations caused by component mismatching.
- Mechanism Integrity Guarantee: Effectively maintains the structural stability and functional integrity of the support blade assembly, providing reliable support for the continuous and stable operation of Lectra equipment.
Technical Specifications
| Specification |
Details |
| Part Number |
702852 |
| Product Name |
Connect Rod |
| Applicable Assembly |
Support Blade 2.4x8.5 Assembly |
| Compatible Equipment |
Lectra MP6-MP9/MX-M9/iX6 |
| Material |
High-strength alloy |
| Core Function |
Reliable connection and force transmission for support blade assembly, ensuring smooth movement and precise operation |
| Key Features |
Precise compatibility, reliable force transmission, high-strength, wear-resistant, accurate dimension |
| Place of Origin |
China |
| Brand Name |
MakerBoni |
| Certification |
CE, ECM, ATC |
| Warranty |
6 Months |
| Machine Type |
Lectra Cutting & Shaping Equipment |
| Product Type |
Spare Parts |
| Applicable Industries |
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Other Industrial Fields |
| Maintenance Requirement |
Regular inspection for wear, deformation and connection tightness; timely lubrication to ensure smooth operation |
Other Related Lectra Blade Spare Parts
We also provide a full range of Lectra-compatible blades matching different Vector series models, with detailed specifications as follows:
| Product Name |
Size |
Lectra Part Number |
| Vector2500 Blade |
5.5*1.5*88mm |
801220 |
| Vector5000 Blade |
2*7*295mm |
801214 |
| Vector5000 Blade |
2.4*8.5*295mm |
801227 |
| Vector7000 Blade |
2.4*7*360mm |
801222 |
| Vector7000 Blade |
3*8.5*360mm |
801217 |
| Vector MP6 Blade |
2.4*8.5*295mm |
801274 |
| Vector MP9 Blade |
2.4*8.5*364mm |
801269 |
| Vector MH Blade |
2.4*8.5*295mm (MP6) |
801274 |
| Vector M88 Blade |
2.4*8.5*364mm (MP9) |
801269 |
| Vector MH8 Blade |
2.4*8.5*364mm (MP9) |
801269 |
| Vector MX Blade |
2.4*8.5*295mm (MP6) |
801274 |
| Vector MX9 Blade |
2.4*8.5*364mm (MP9) |
801269 |
Why Choose Our 129688 Y Motor Gear (Spare Part)
For cutting machine dealers in European and American markets, Lectra machinery repair shops, and garment shop operators, our 702852 Connect Rod is a reliable and high-value spare part option. Manufactured to OEM-grade quality standards, it strictly complies with Lectra's original technical parameters and uses premium high-strength alloy materials, ensuring consistent performance with factory-installed components while offering more competitive pricing. We maintain sufficient global stock for immediate shipment, enabling you to fulfill urgent maintenance orders for Lectra MP6-MP9/MX-M9/iX6 equipment promptly. As a direct manufacturer, we provide flexible bulk pricing and trade terms, helping dealers maximize profit margins and manufacturing plants/garment shops control maintenance costs. Additionally, our 20-year experienced technical team offers dedicated after-sales support, providing professional guidance on rod installation, dimension inspection, assembly alignment and compatibility verification. We also offer a complete range of matching Lectra blade spare parts, allowing you to achieve one-stop procurement and improve supply efficiency.
FAQ
01 Q: Can I have a sample?
A: Of course you can. Samples are free of charge. We offer samples of consumables (blades, stones, bristles). Samples are not available for mechanical parts, but there is an after-sales service guarantee. Please email us at: spareparts@makerboni.com
02 Q: Where is your loading port?
A: Shanghai Port, China
03 Q: What kind of trade terms can you offer?
A: If you have your standard trade terms, please let our sales staff know. We commonly offer Ex-works, FOB, CFR, CIF, and other trade terms.
04 Q: What are your payment methods?
A: For orders that we can ship within 24 hours, 100% payment is due. For orders that have to be manufactured, please pay 30% in advance and 70% before delivery.
05 Q: What is your lead time?
A: Generally, we deliver within 24 hours after receiving payment, and we have sufficient spare parts in stock.
06 Q: What is your product quality control and after-sales service?
A: We promise that the quality of our goods is the same as the original goods; you can try some goods first. For spare parts, if there is any unsolvable problem in the work, we have a team of professional technical engineers with 20 years of experience to support you, or we will replace them as soon as possible.
07 Q: What are your prices, and can I get discounts if I buy in bulk?
A: We are manufacturer direct production. You can visit us at any time. We offer the best price for our customers to build a long-term relationship. We will give you a discount according to your order.
08 Q: Can the connect rod be replaced easily?
A: The replacement of the 702852 Connect Rod requires professional operation and compliance with standard installation procedures. It is not a simple "easy replacement" process for non-professionals. Key steps include marking the orientation of the rod end caps to avoid misalignment, checking the fit clearance of components, removing burrs and debris, and ensuring accurate tightening of bolts. Improper operation may lead to component failure or equipment precision degradation. We recommend that the replacement be performed by professional maintenance personnel. Our 20-year experienced technical team provides dedicated after-sales guidance, including installation process explanation and key operation tips, to ensure smooth replacement.
